BOOMS
Fixed (Steel) Boom with Swivel or Rigid Hook. Length as stated below.
Light Duty 16” Fixed Boom Weight Capacity: 250 lb. made from 2.5” square tubing.
Standard Boom Weight Capacity: 300 lbs. made from 2” square tubing/Length 30” or as needed.
Heavy Duty Weight Capacity: 500 lbs. made from 3” square tubing/Length 27” or as needed.
FORKS

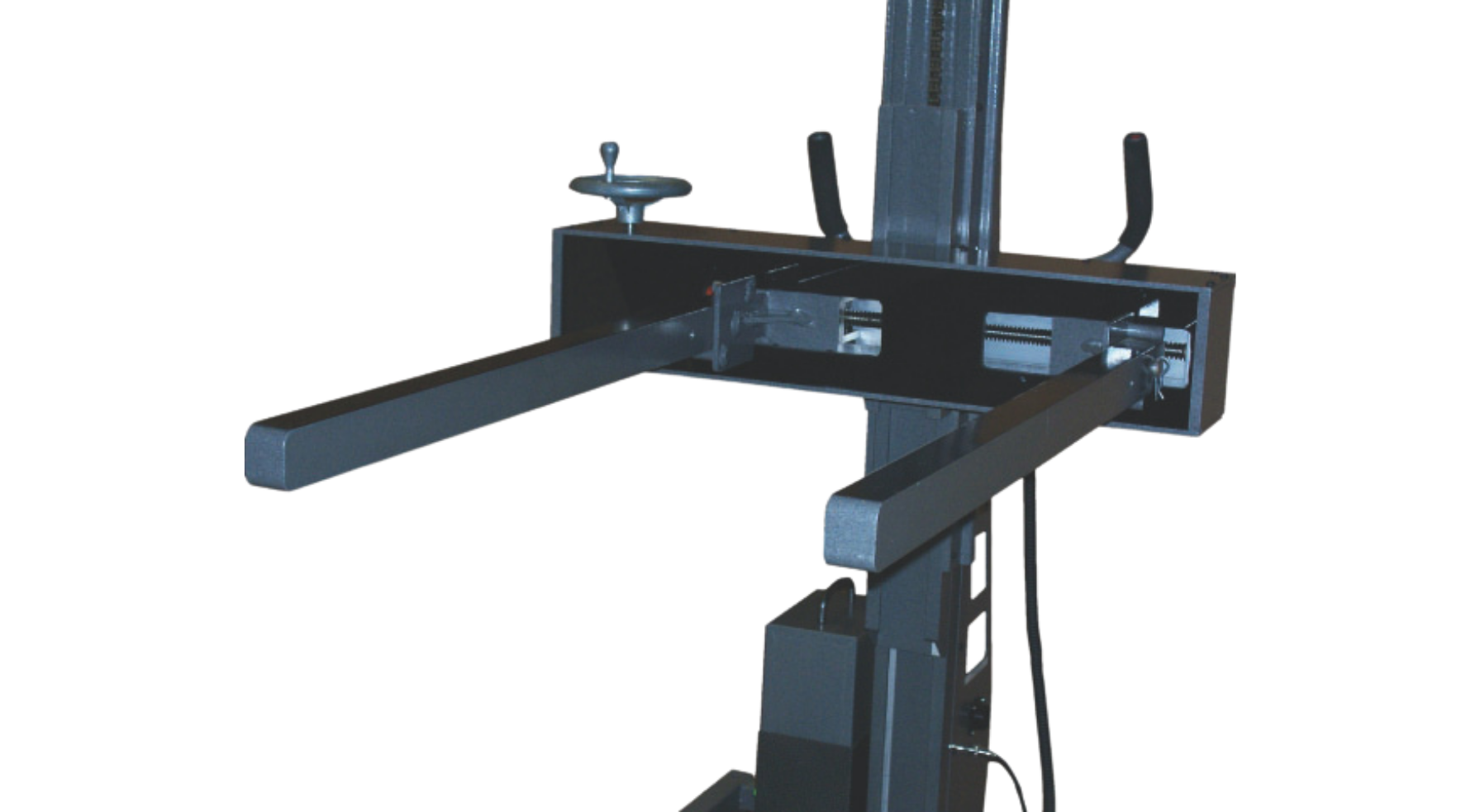

Forks come in a variety of sizes, fork width, etc., some of which are detailed below. Fork length/width can be modified to meet your application.
Light Duty (Steel) Adjustable Forks:
16” Fork Length — 2 ½” Fork Width — ½” Fork Thickness
Adjustability: 10” OD to 19 ¼” OD
Weight Capacity: 200 lbs.
Standard (Steel) Adjustable Forks:
20” – 42” Fork Length — 2 ½” to 3” Fork Width — ½” Fork Thickness
Adjustability: 10” OD to 23” OD
Weight Capacity: 300 lbs. at 20” and 200 lbs. at 42”
Also available in 304 Stainless Steel
Heavy Duty (Steel) Adjustable Forks:
Adjustable Forks: 22” – 42” Fork Length — 3” Fork Width — ½” Fork Thickness
Adjustability: 12” OD to 23” OD
Weight Capacity: 650 lbs.
ROLL/BARREL HANDLERS
Grip/Hug Rolls or Barrels – Turn – Rotate – Dump – Manual or Powered
Light Duty Manual Roll/Barrel Handler:
Weight Capacity: 100 lbs.
Arm Length: 12” or as needed
Actuation: Mechanical slide driven via acme screw and hand wheel
Material: Aluminum and Steel
Standard Duty Manual Roll/Barrel Handler:
Weight Capacity: 300 lbs.
Arm Length: 12” or as needed
Actuation: Mechanical slide driven via acme screw and hand wheel
Material: Aluminum and Steel
Standard Powered Roll Handler:
Weight Capacity: 300 lbs.
Arm Length: 12” or as needed
Actuation: Mechanical slide driven via acme screw and electric gear motor
Grip Actuation: Automatic operation with current sensing grip pressure
Material: Aluminum and Steel
Powered Roll Handler with Powered Rotation:
Weight Capacity: 600 lbs.
Arm Length: 12” or as needed
Actuation: Mechanical slide driven via acme screw and electric gear motor
Grip Actuation: Automatic operation with current sensing grip pressure
Rotation/Actuation: Electric Gear Motor
Material: Aluminum and Steel
Powered Roll Handler with Powered 90 Degree Rotation:
Weight Capacity: 600 lbs.
Arm Length: 12” or as needed
Actuation: Mechanical slide driven via acme screw and electric gear motor
Grip Actuation: Automatic operation with current sensing grip pressure
Grip Control: Current sensing with manual override
Rotation/Actuation: Electric Gear Actuator (90 Degree)
Material: Aluminum and Steel

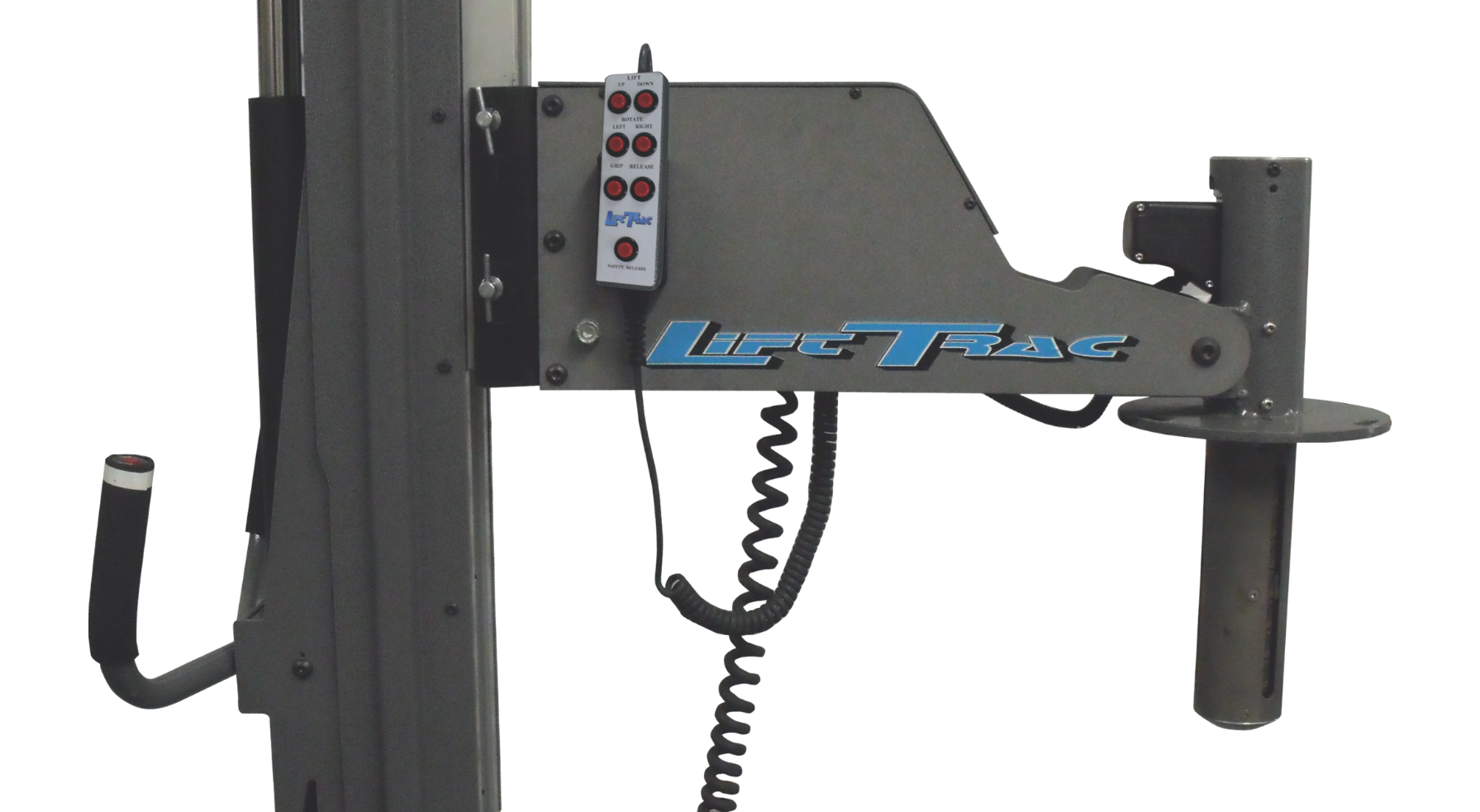

ROLL MANIPULATORS
For picking up rolls of varied materials from the inside core and lifting/pitching from vertical to horizontal.
Weight Capacity: 300 lbs.
Probe Diameter: 3” (6” adaptor available separately)
Probe Length: 9”
Probe Rotation: 90 degrees from vertical to horizontal
Probe Core Actuation: Electric Gear Motor
Probe Tilt Actuation: Electro-Mechanical Actuator
Operator Control: Via hand held push button pendant with 5 foot long coiled cord
3” JAW STYLE ROLL MANIPULATOR
If the core material of your roll is light weight or thin and will not allow for the eccentric grabbing of the core, the jaw style may be a solution.
Weight Capacity: 150 lbs.
Probe Diameter: 3” or 6”
Probe Length: 9”
Probe Rotation: 90 degrees from vertical to horizontal
Core Retention: 3 hardened steel toothed jaws
Probe Core Actuation: Electric Gear Actuator
Probe Tilt Actuation: Electro-Mechanical Cylinder
Operator Control: Via hand held push button pendant with 5 foot long coiled cord
SLIDE MANIPULATOR
Powered Grip Actuation with current sensing grip pressure
Weight Capacity: 300 lbs.
Arm Length: 32” to center (or as needed)
Arm Actuation: Mechanical slide driven via acme screw and electric gear motor
Operator Control: Via hand held push button pendant with 5 foot long coiled cord
TABLES/PLATFORMS
Tables/Platforms come in a variety of sizes and materials, some of which are listed below.
Tables/platforms can not only be used for material handling, but can be locked in place and used as a working platform at a varied height to relieve back strain for the operator.
Weight Capacity: 250 lbs.
Table Size: Varies from 20” x 20” and up as needed.
Table Options: Available as a flat table, or with drop down sides
Table Material: Aluminum/Steel
Ball Rollers: Nylon Balls – 4” Spacing
Actuation: Manual versus handle and cam
Available fixed or on a swivel with 90 degree locking indents
Weight Capacity: 250 lbs.
Table Size: Varies from 18” x 20” and up as needed.
Material: Galvanized Steel Top/Carbon Steel Tubular Frame
Available with heavy duty frame for lifting capacity up to 650 lbs.
Also available in stainless steel table top with carbon tubular frame
Available fixed or on a swivel with 90 degree locking indents
Weight Capacity: 250 lbs.
Roller Width: 12”
Length of Conveyor: 24” or as needed
Rollers: 1 ⅜” diameter spaced on 1 ½” centers with manual locking device
Material: Steel (Galvanized rollers/black painted frame)
Available with heavy duty frame/larger sizes for lifting capacity up to 600 lbs.
Available fixed or on a swivel with 90 degree locking indents
MISCELLANEOUS
Weight Capacity: 250 lbs.
Arm Length: Length as required – fixed or adjustable
Grip Actuation: Mechanical Latch and Operator Installed Pin
Rotation: 135 degrees from horizontal to dump position via electro-mechanical actuator
Operator Controls: Hand-held push button remote pendant with 5’ coiled cord
The HA-80 Hoist Arm is a power-controlled strap with a hook to allow for moving materials from the ground to placement on a table or workbench. The HA-80 is intended for installation on a workbench or table and comes with a pivot mount to allow for left-to-right movement.
Weight Capacity: 100 lbs. controlled by Limit Switch
Variable Speed
Operation: Up and Down Switch
Strap Controlled by Limit Switch
Powered or Battery Operated.
